Hollow blocks
Concrete hollow blocks in 6", 8" and 9" sizes, with a corner groove at both ends.

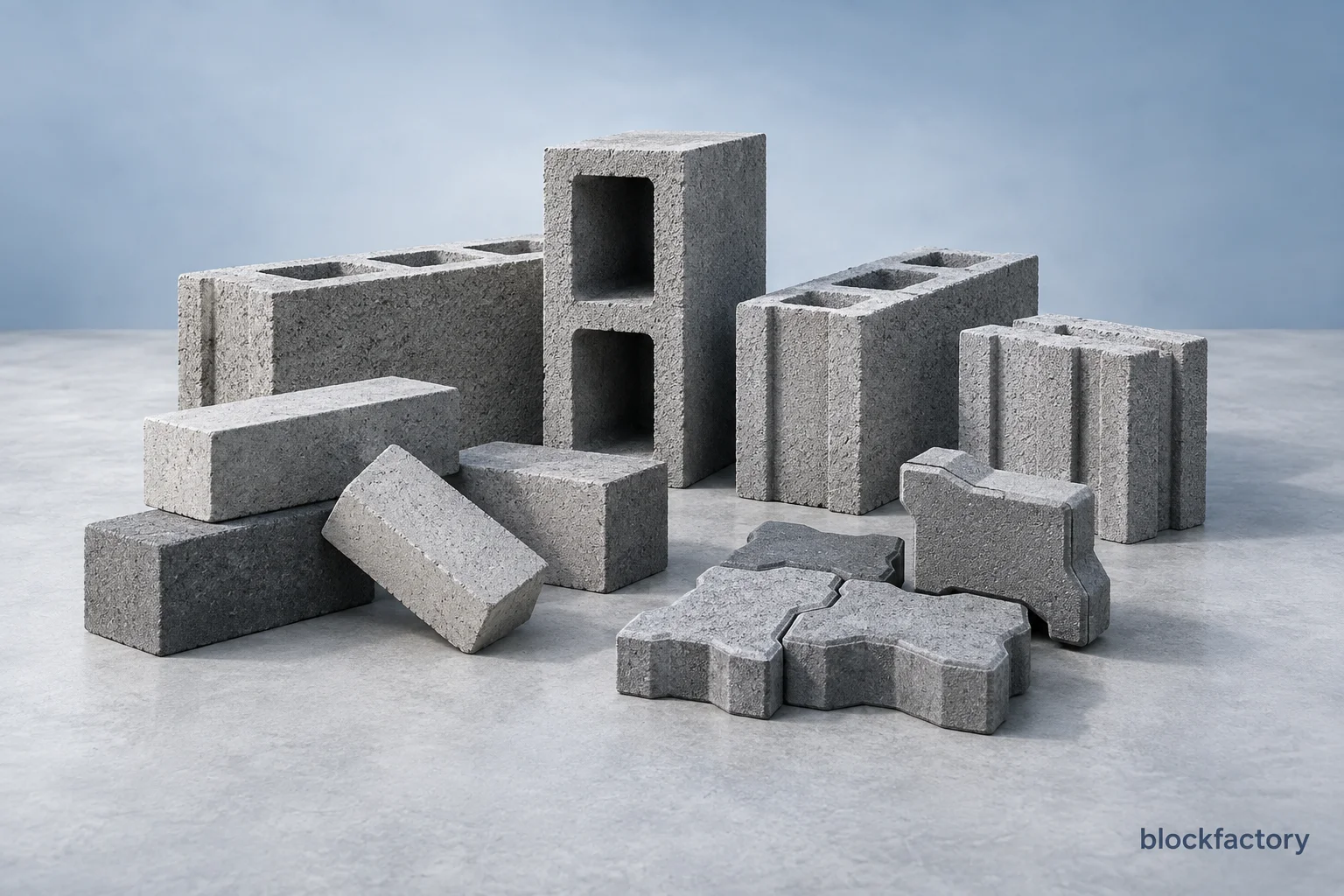

Concrete products
Three product categories, each formed on the QT5-15 line with a compatible mould, plus custom blocks made to your specification.
Product categories
Solid bricks
Solid concrete bricks, made with compatible solid-brick moulds.
Paving products
Concrete paving products, made with compatible paving moulds.
Sizes
Block sizes and moulds
Our standard hollow block range, and the moulds available for the line.
| Block | Size (W × H × L) | Face shell | Cores | Solid ratio | Approx. weight |
|---|---|---|---|---|---|
| 6" (6 × 8 × 16 in) | 150 × 200 × 400 mm | 30 mm | 2 × 140 × 90 mm | 55% | 13.8 kg |
| 8" (8 × 8 × 16 in) | 200 × 200 × 400 mm | 32 mm | 2 × 140 × 136 mm | 49% | 16.4 kg |
| 9" (9 × 8 × 16 in) | 230 × 200 × 400 mm | 35 mm | 2 × 140 × 160 mm | 48% | 18.5 kg |
Block: 6" (6 × 8 × 16 in)
- Size (W × H × L)
- 150 × 200 × 400 mm
- Face shell
- 30 mm
- Cores
- 2 × 140 × 90 mm
- Solid ratio
- 55%
- Approx. weight
- 13.8 kg
Block: 8" (8 × 8 × 16 in)
- Size (W × H × L)
- 200 × 200 × 400 mm
- Face shell
- 32 mm
- Cores
- 2 × 140 × 136 mm
- Solid ratio
- 49%
- Approx. weight
- 16.4 kg
Block: 9" (9 × 8 × 16 in)
- Size (W × H × L)
- 230 × 200 × 400 mm
- Face shell
- 35 mm
- Cores
- 2 × 140 × 160 mm
- Solid ratio
- 48%
- Approx. weight
- 18.5 kg
From our hollow block drawings. Dimensions in mm; the 400 mm length has no mortar allowance, and cores taper 3–5 mm for mould release. Weights are indicative (at 2,100 kg/m³) and are confirmed with the plant mix.
Moulds
Block machine mould 01
150 × 200 × 400 mm
6 pieces per mould
Block machine mould 02
100 × 200 × 400 mm
9 pieces per mould
Block machine mould 03
125 × 200 × 400 mm
8 pieces per mould
Block machine mould 04
400 × 200 × 60 mm
5 pieces per mould
Custom blocks, made for you
Need a size or shape that isn't listed? Share your drawing or specification and we can make custom blocks for your project.
Built around your mould
The QT5-15 uses interchangeable moulds, so the product you make is defined by the mould you fit.
- A mould change procedure applies to moulds of the same height.
- Moving to a mould of a different product height also requires adjusting the machine before production.
- The control panel includes pigment feeder functions — forward, backward, rise and drop — for a colour feeding system. These functions apply only when the colour system is ordered; otherwise they are not used.
- Configuration, moulds, product dimensions and achievable output must be confirmed for your project before ordering. Line arrangement and supplied equipment depend on the confirmed order.

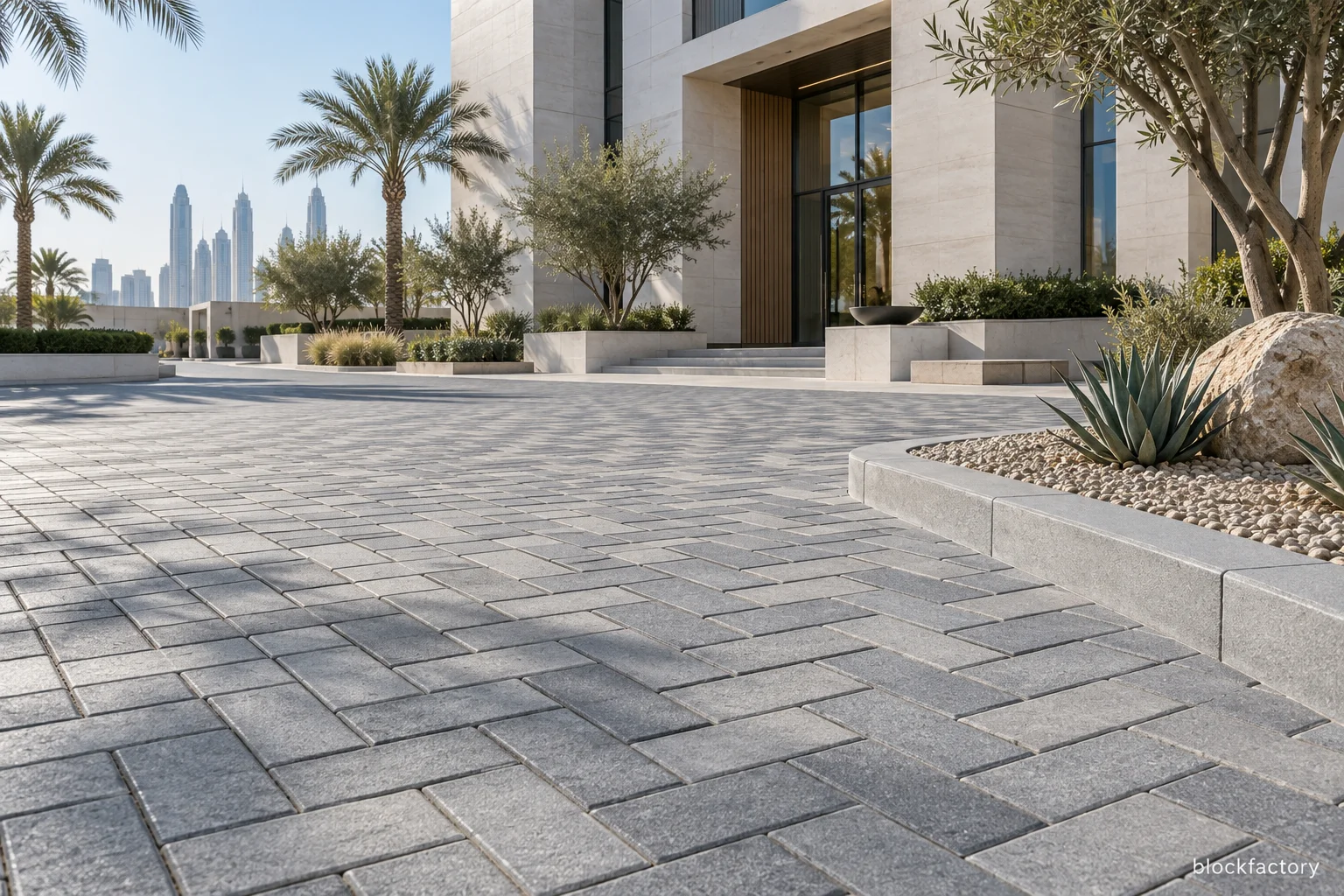

Illustrative paving application
Applications
Paving for paths, patios and hard landscaping
Concrete paving products suit pedestrian routes, entrance areas and landscaped surroundings.
Paving shapes and sizes come from the mould fitted to the line, and coloured paving needs the optional colour feeding system. Tell us about your site and our team will confirm which paving products are available for it.
